SCHRÖDER IMAX 520
SCHRÖDER IMAX 520
Contact us for price
Location:Veliko Tarnovo, Bulgaria
or
Call +35 962 623536
Description

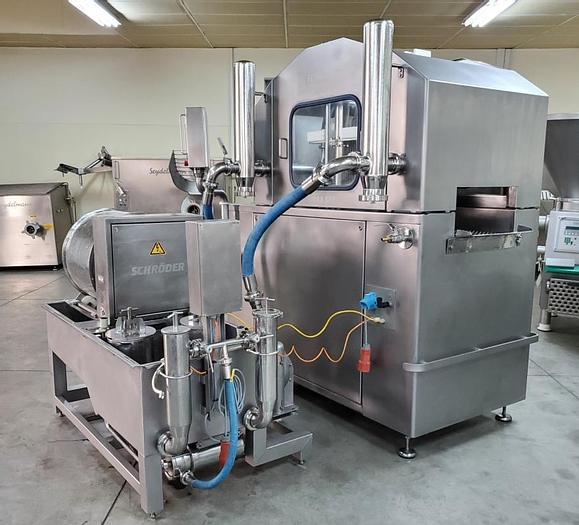

Automatic injector 150 needles
To work with boneless meat
Rotating brine filter DF 510
Machine dimensions in mm:
Specifications
| Manufacturer | Schroeder |
| Model | ІМАХ 520 |
| Condition | Used |
| Stock Number | 4276 |
| Channel width | 520 mm |
| Max. injection area per hour | 187 m2 |
| Cycles per minute | 15 to 60 |
| Advance | 50/100mm |
| Loading width | 520 mm |

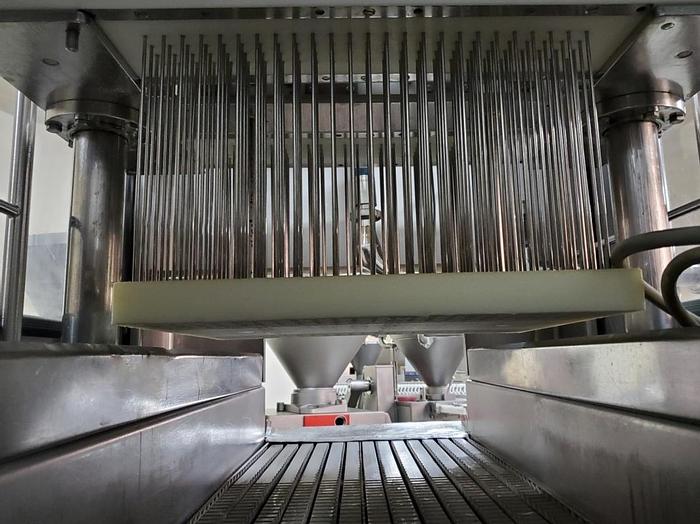

| Needles quantity | 150 (2 x 75), 4.0 mm |
| Pressure range | 0.5-4.5 bar |
| Compressed air min. | 6 bar |
| El.connection | 230/400 V, 50 Hz |
| El.connection value | 16.5 kW; 32 A |
| Length | approx. 2100 |
| Width | approx. 1500 (approx. .2150 mm with filter) |
| Height | approx. 2350 |
